Capabilities and change detection
How Open MCP Portal reads a server's tools, prompts, resources and resource templates, notices changed definitions, and checks the server's health.
A server's capabilities are what it lists: tools, prompts, resources and resource templates. Open MCP Portal reads them when the server is created, when its URL changes and when an editor chooses Refresh capabilities on the Overview tab. Gateways and the catalog never contact the server to list them: clients get the definitions the portal stored and approved.
Reading capabilities
A refresh connects to the server and lists every kind it advertises, page by page. It never calls a tool. Limits keep a misbehaving server from flooding the portal:
- at most 500 entries per kind, and at most 500 pages; a repeated cursor stops the listing;
- each response at most 1 MiB, and a single definition at most 64 KiB (more fails the refresh);
- titles clipped to 200 characters and descriptions to 10,000; names and URIs up to 1,000 characters (longer or invalid entries are skipped).
A kind the server advertises but answers with "method not found" counts as empty. For a server in OAuth mode, the refresh uses the connection of the person who authorized it ("Capabilities read as …"); if that connection lapsed, or that person is no longer an editor or above, the refresh asks someone to authorize again.

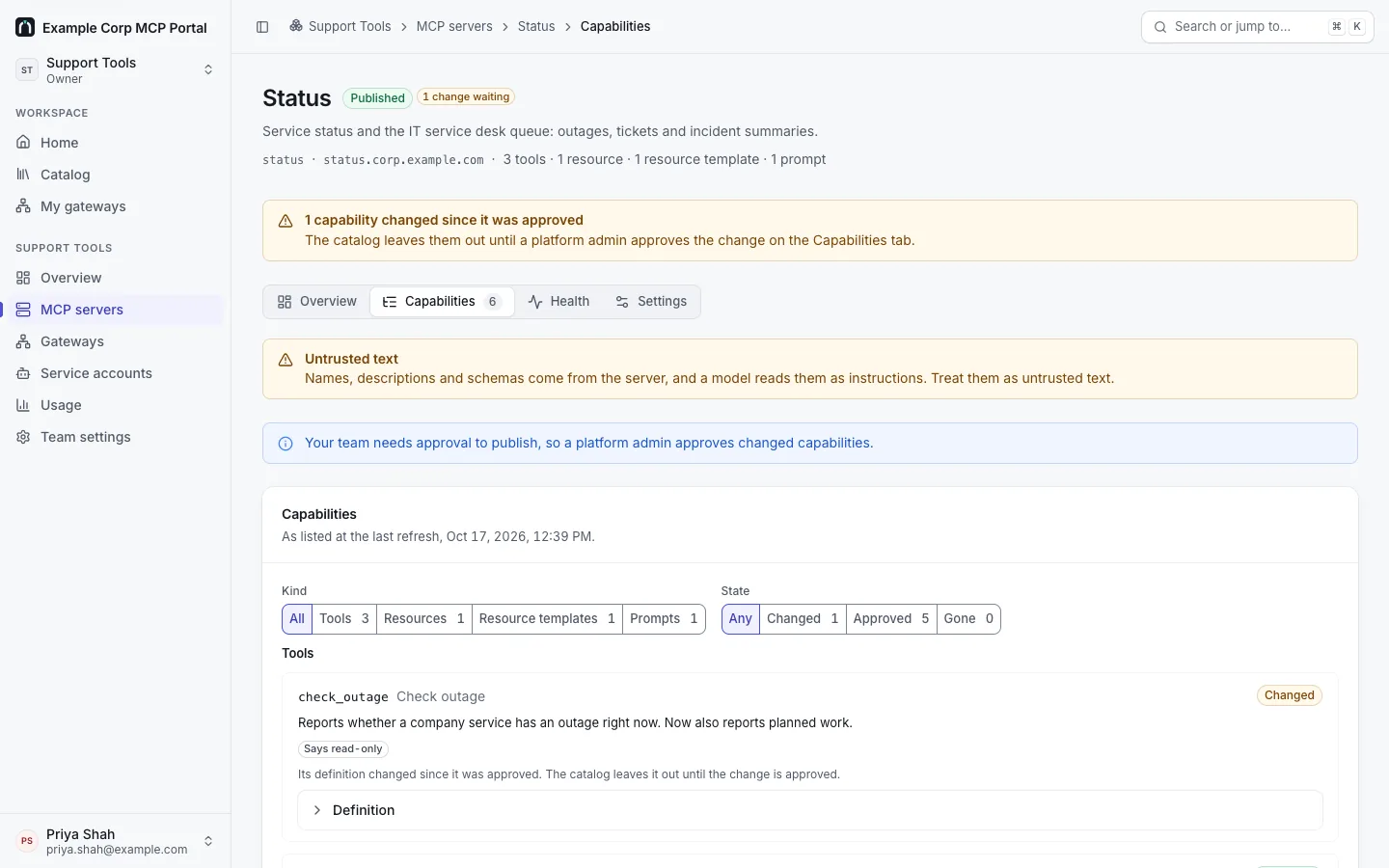

The Capabilities tab lists what was read, by kind, with each item's description and the hints the server declares (read-only, destructive, idempotent, open world). The portal shows those hints but never trusts them for any decision.
Untrusted text
Names, descriptions and schemas come from the server, and a model reads them as instructions. Read them before you publish a server or approve a change.
Fingerprints and changes
The portal stores each capability's definition as canonical JSON (sorted keys, without _meta, which servers use for data that changes between calls) and its SHA-256 fingerprint. On each refresh it compares:
- Approved means the current definition is the one that was approved, and the server still lists it.
- Changed: on a published server, a definition that differs from the approved one. A changed capability drops out of the catalog and stops being served by gateways that use it as a catalog capability, at once, without anyone acting, until the change is approved.
- New: on a published server, a capability listed for the first time isn't approved either.
- Gone: a capability the server no longer lists. Its approval is withdrawn; if it comes back, it needs approval like a new one.
A refresh never approves anything. The server's pending-changes count covers changed and new capabilities. Each refresh reports how many were listed, added, changed and gone, and is recorded in the audit log.
Who approves: a platform admin under Approval required; the team's owners and admins under Self-publish (Approve change on the capability, after reading its definition). Private servers need no approval for the team's own gateways: a team gateway serves the team's own servers' capabilities as they are now. See Publishing and review.
Health
Each server's health comes from checks:
- Scheduled: every
HEALTH_CHECK_INTERVAL(5 minutes by default), the portal checks every enabled server of every active team, four at a time, on one replica. - Test connection on the Overview tab runs a check now.
- Every Refresh capabilities also stores a check.

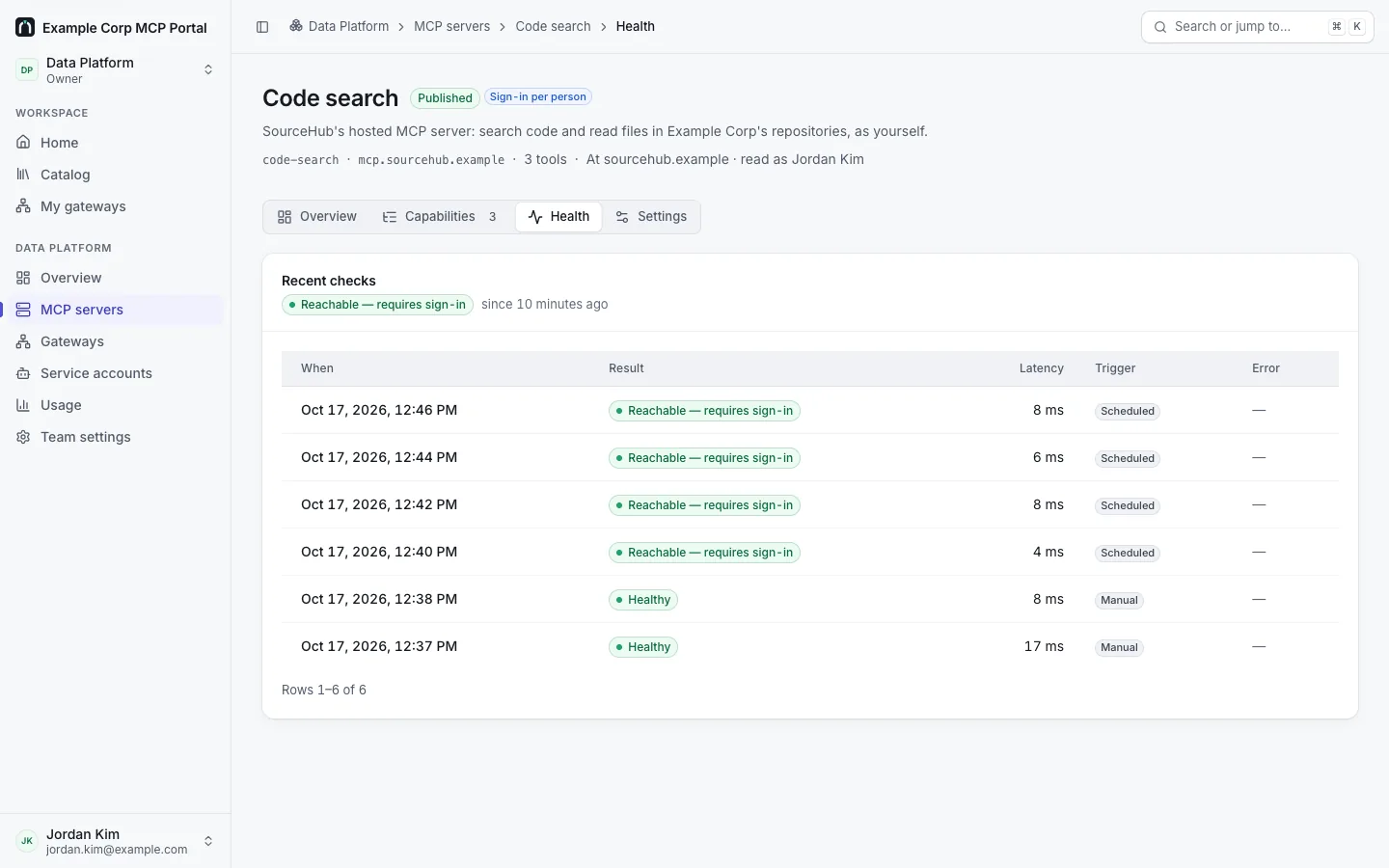

The Health tab lists the latest 100 checks: ok or failed, latency, what triggered it, the HTTP status and a short message with secrets redacted. A failing server shows since when.
| Error | Means |
|---|---|
| Couldn't reach the server | A network error, or an HTTP error other than those below (such as 5xx) |
| Credentials refused | The server answered 401 or 403 |
| Not found: check the URL | 404 |
| Rate limited | 429 |
| Request refused | 400, or a JSON-RPC invalid request or invalid params error |
| Unexpected response: is this an MCP server? | The answer wasn't valid MCP, or was cut off |
| Settings problem | The stored header value can't be decrypted (for example after an encryption key change without the previous key) |
| No answer in time | The server's timeout passed |
| Response too large | Over 1 MiB |
| Address not allowed: private, loopback or a redirect | Blocked by the address guard, or the server redirected |
For a server in OAuth mode, scheduled checks use nobody's token: an unauthenticated initialize that gets the expected 401 challenge for this server counts as healthy, shown as Reachable — requires sign-in. Test connection uses the setup person's connection.
Disabling a server
Turning a server off in Settings stops checks and calls, and removes it from the catalog; gateways show its capabilities as unavailable ("Server disabled") until it's turned on again.
