Auth providers
Configure the OAuth apps (GitHub, Google, Microsoft Entra ID, Atlassian, Slack, GitLab or your own) that let Open MCP Portal tools act as the person calling.

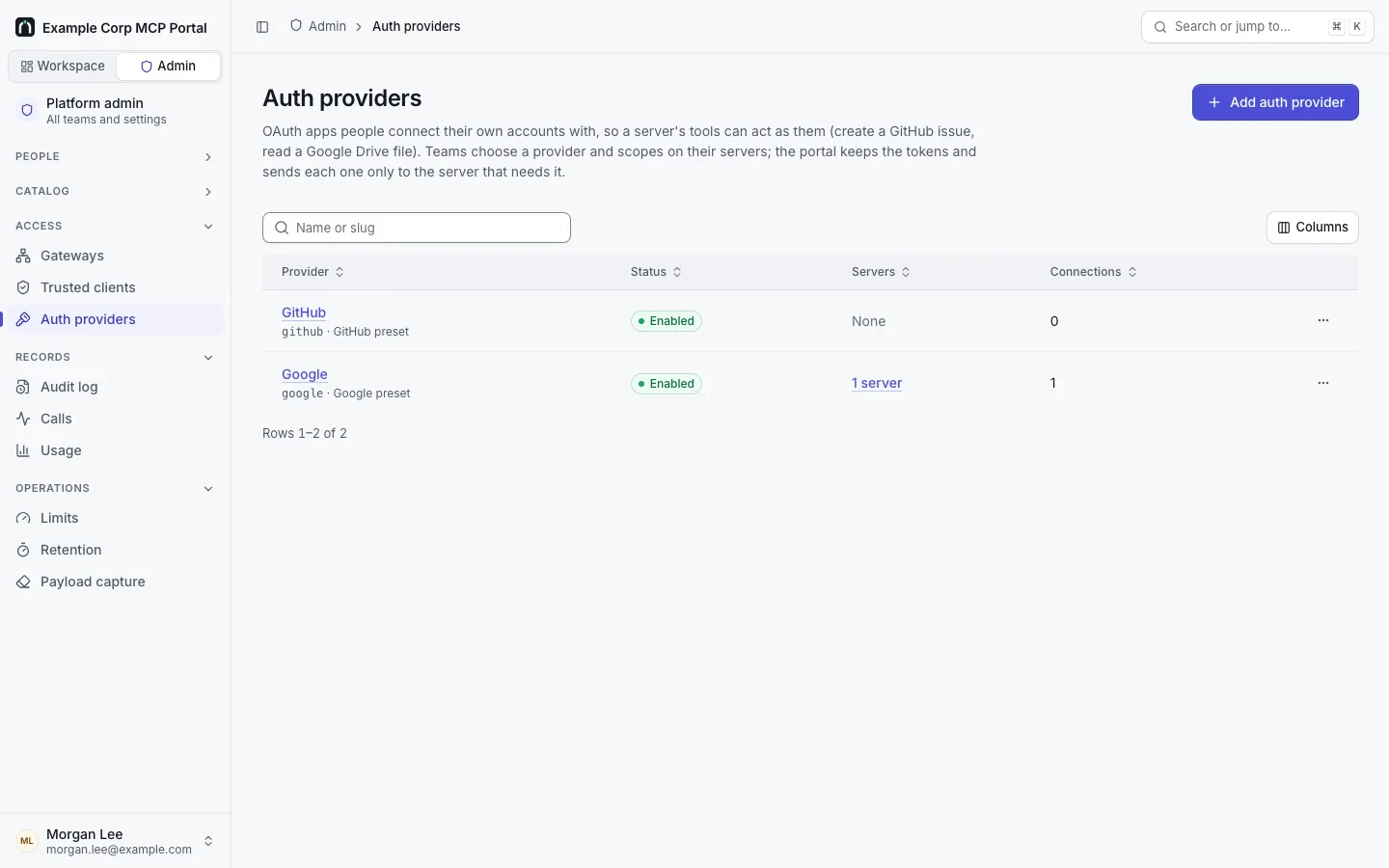

An auth provider is an OAuth app on another service that people connect their own accounts with, so a server's tools can act as them: create a GitHub issue, read a Google Drive file. Platform admins configure each provider once in Admin › Auth providers; teams then choose a provider and scopes on their servers (user authorization). The portal keeps each person's tokens, encrypted, and sends each one only to the server that needs it. Auditors can read the configuration.
Add a provider

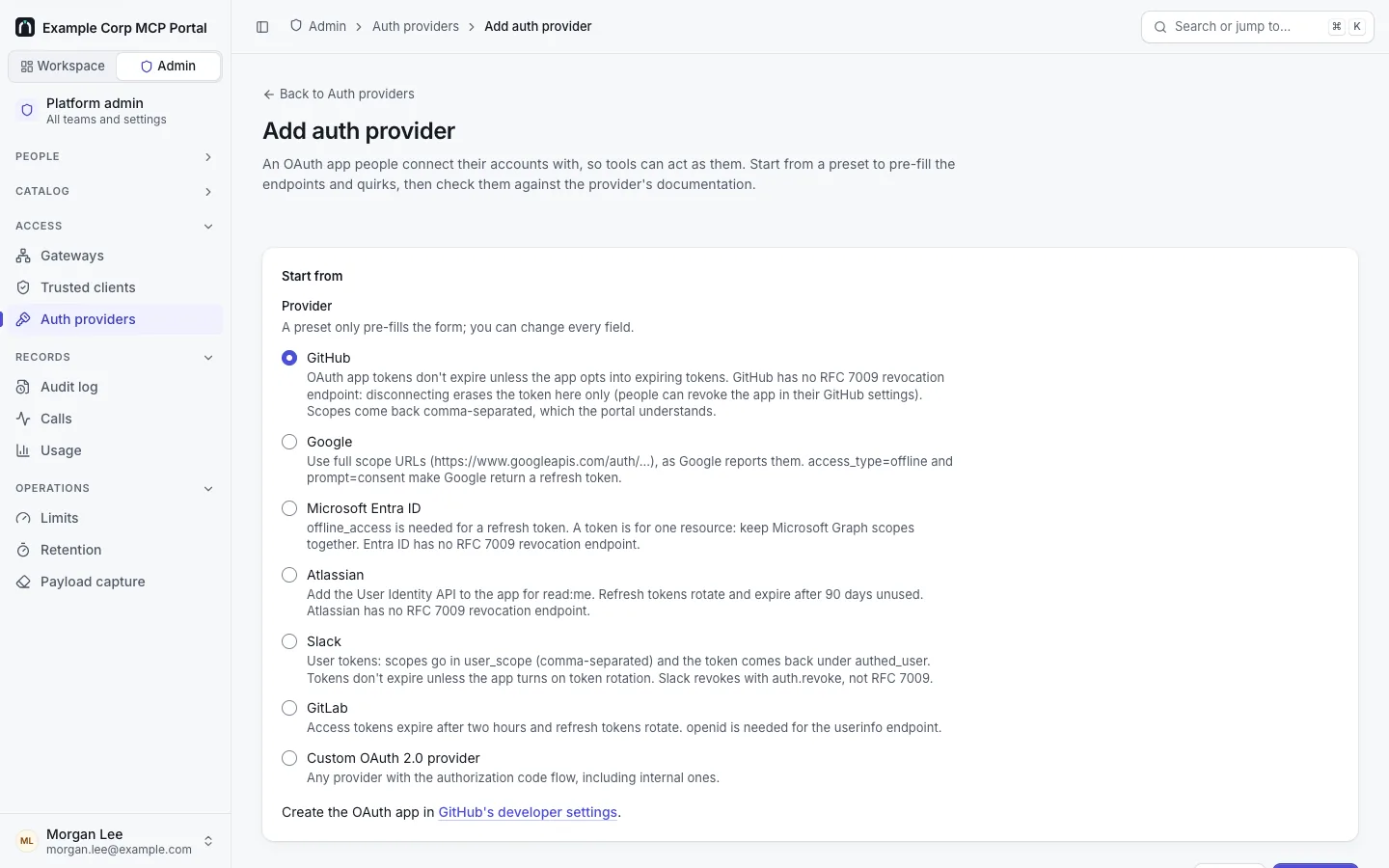

Add auth provider › Start from a preset, or Custom OAuth 2.0 provider (any provider with the authorization code flow, including internal ones). A preset only pre-fills the form; check the values against the provider's documentation. Presets that need a value in their addresses ask for it (Microsoft's tenant, GitLab's host).
| Preset | Pre-filled |
|---|---|
| GitHub | Authorize https://github.com/login/oauth/authorize, token …/access_token, userinfo https://api.github.com/user; default scope read:user. No revocation endpoint |
Google's authorize, token, revoke and userinfo endpoints; default scopes openid and …/auth/userinfo.email; access_type=offline, prompt=consent, include_granted_scopes=true. Use full scope URLs | |
| Microsoft Entra ID | login.microsoftonline.com/{tenant}/oauth2/v2.0/… (tenant organizations by default), userinfo graph.microsoft.com/oidc/userinfo; default scopes openid profile email offline_access User.Read |
| Atlassian | auth.atlassian.com, userinfo api.atlassian.com/me; default scopes read:me offline_access; audience=api.atlassian.com, prompt=consent; PKCE off |
| Slack | slack.com/oauth/v2/authorize and oauth.v2.access; user tokens: scope parameter user_scope, comma separator, token under authed_user; PKCE off; no revocation endpoint |
| GitLab | {host}/oauth/… (host gitlab.com by default, or your self-managed host), with revoke and userinfo; default scopes openid read_user |
The form's sections:
- Provider: Name (what people see when they connect), Slug (lower-case letters, digits and dashes; servers receive it in
MCP-Gateway-Providerand the identity token'sproviderclaim, and consent links use it; can't be changed;done,callbackand names starting withmcp-are reserved), Logo URL, Enabled. - OAuth app: the Redirect URI to register at the provider, always
<APP_URL>/connect/callback, with a copy button; Client ID; Client secret (encrypted, never shown again, not even to platform admins); Token endpoint authentication (client_secret_post, the default,client_secret_basic, or none for a public client, which needs PKCE); Use PKCE (S256) (keep it on unless the provider rejects it). - Endpoints: Authorization URL (where people's browsers go to approve), Token URL, optional Revocation URL (RFC 7009, used when someone disconnects) and Userinfo URL (read once after connecting, to label the account, such as
octocat). All must be https; the token, revocation and userinfo endpoints are reached through the same address guard as MCP servers, so an internal identity provider needs an internal network entry. - Authorization request: Default scopes (asked for when a server's requirement names none, and when someone connects from My connections), Scope parameter (
scope, oruser_scopefor Slack user tokens), Scope separator (space, or comma for Slack), Token response format (standard, or underauthed_userfor Slack), and Extra authorization parameters (onekey=valueper line, at most 10; the portal setsclient_id,redirect_uri,state, the scope parameter and PKCE itself).
Register the redirect URI at the provider before people connect: they can't until it matches. Up to 100 providers.
A provider's page
Overview shows the redirect URI, the configuration (never the secret) and its use: the servers that require it and how many people connected it. Settings edits everything except the slug; the client secret is replace-only.
- Changing the Client ID disconnects everyone: their tokens belong to the old app, so their connections are marked as needing to connect again and their tokens are erased.
- Turning it off refuses calls that need it (
-32010,provider_disabled) and new connections. Existing connections are kept. - Delete this provider is refused while any server requires it (the dialog lists them). Otherwise it erases every connection and revokes it at the provider where it can.
How tokens are handled
- People connect through a consent link the first time a tool needs the provider, or ahead of time from My connections or My gateways. See Connecting accounts.
- Token requests are form-encoded; answers may be JSON or form-encoded. Every exchange has a 10-second limit (userinfo 5 seconds) and a 64 KiB answer limit, follows no redirects and uses no proxy.
- Access tokens are refreshed when they expire within 60 seconds, under a database row lock so two replicas never use a rotating refresh token twice. A refused refresh marks the connection as needing to connect again; an unreachable provider answers
-32010(provider_unavailable) and keeps the connection. - Tokens and the client secret are never returned, logged, audited, recorded in calls or captured.
- The portal doesn't check that the provider account belongs to the person (for example by email). The account label is informational.
Audit: auth_provider.create, .update (with clientSecretChanged and connectionsReset), .delete, and provider_connection.create, .refresh_failed, .revoke.
OAuth-protected MCP servers
Servers in Sign-in with OAuth, per person mode have their own client, configured by their team, and don't appear in this list. A team can instead link a platform provider whose authorization and token URLs equal the server's discovered ones: the server then uses that provider's client (ID, secret and settings), but keeps its own connections. While a server uses it, the provider can't be deleted and its authorization and token URLs can't be changed.
